The FP SERIES forge presses can address any forge application, featuring single and multi-station die holders with hydraulic ejectors and an “unsticking” device. With fully guarded high and low-speed gears, high compression bronze bushings, and massive pitman slide connections, the FP drivetrain is designed to endure a wide range of challenging jobs. Our FP SERIES is designed for flatter and wider forgings. When taller and thicker forgings are required, it may be suggested that you move up to the FPG or FPG-X forge press models.

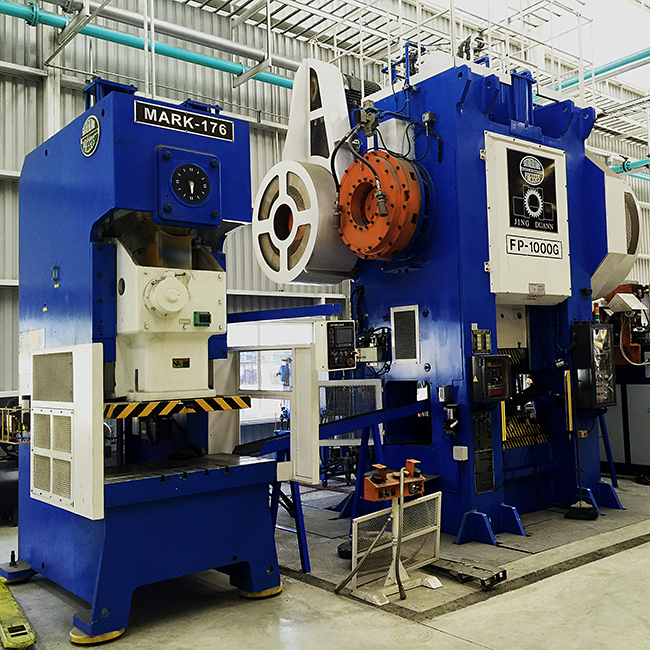

The FP Series forge press 400-1000 ton can address any forge application. Featuring single and multi-station die holders with hydraulic ejectors.REQUEST A QUOTE

SERVICE, WARRANTY & SUPPORT

Learn more >
The FP Series forge press 400-1000 ton can address any forge application. Featuring single and multi-station die holders with hydraulic ejectors.

FEATURES & COMPONENTS

Installation & Service

Trucking, rigging & foundation upon request
Technicians for press start up and training
Preventative Maintenance Programs at 6-12 months
3-2-1 Warranty based on multi-shift use

Mechanical

Robust fabricated steel frames
Frames are stress relieved after welding
NTN Bearings on high speed shafts
Fully guarded High & Low speed gears
High compression bronze bushings
Eccentric shafts are rated for 200% capacity
Massive Pitman Slide Connection
Motorized slide adjustment
Eight point full length slide guides
Single or Multi-Station Die Holders (Opt)

Pneumatic

Ross safety lock out valve
SMC liquid filled gages
SMC regulators & lubricators
NOK seals & packings
Ross or Taco DSV dual safety valve
Hi Torque separate clutch & brake
Air pressure switch monitored at control
Air counter balance cylinder for upper die weight
Flywheel brake for safe entry to die area
Air ejector tied to cam for part removal

Hydraulic

Unsticking device under slide adjustment screw
Keyed un-sticking near BDC
Tank & pump at floor level
Lower Ejector Std, Upper (Opt)

Lubrication

IHI automatic grease lubrication
Recirculating Oil Systems (larger presses)
IHI electrically monitored lube distribution blocks
Bijur automatic air-counter balance oiler

Safety Equipment

Adjustable Safety Die Block Electrically Interlocked to Emergency Stop Circuit
Flywheel Brake for Quick Stopping of Flywheel during
Light Curtains for FRONT & REAR 40" (optional)
Light Curtains for FRONT & REAR 30" (optional)

Standard Features

Rotary Encoder with Time & Distance Brake Monitor
Floor Mounted MEP-Main Panel
20% Open Space in MEP for future items
Mobile T-Stand Run Station
Motorized Slide Adjustment with Mechanical Read Out
OMPI Combination Dry Clutch and Brake with Dual
Safety Air Valve
Automatic Lubrication System with Electronic Monitor Cycle Switch
Automatic Air Counter Balance Oiler
Hydraulic Overload System (HOLP) integrated with a key switch located on MOS Operator Control

Mobile T-Stand
Run Station

Press Control

I-PRESS® FORGE Press Control user Friendly Easy Navigation Screens
10” HD Color Touchscreen
Connected Enterprise for Remote Login
Realtime Status Readouts
Hanging Swivel MOS / Master Operation Station
Tonnage Monitor
200 + Job memory
12 Programmable cams
16 Die monitors
130 separate function monitors
Fault Monitors to Protect Press, Automation & Tooling
Step-by-step fault diagnostics
Operator and supervisor access levels
Performance Level D, Category 3 safety functions
Operator/ Maintenance documentation viewable via pdf
User customizable PLC access
Ethernet I/P Connectivity

I-PRESS® FORGE
Press Control
