When you have the need for speed, the HS2 SERIES double point straight side mechanical press is up to the task. These stamping presses are built for high performance, with a plunger-guided drivetrain and hi-torque clutch and brake combination to attain up to 300 strokes per minute. When operating at such high speeds, proper lubrication is essential. The HS2 mechanical press is a metal forming solution that provides constant, worry- free lubrication with its recirculation oiling system, automatic grease lubrication, electrically monitored lube distribution blocks, and a Bijur automatic air counter-balance oiler.

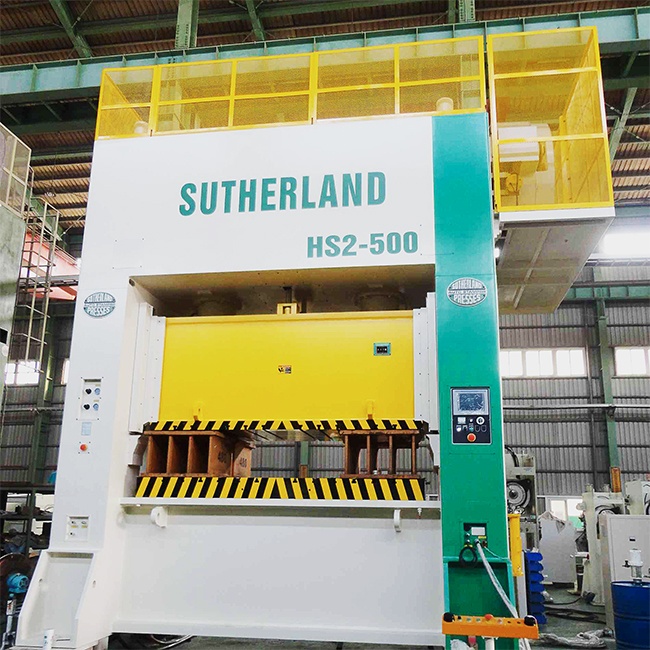

HS2 Series double point straight side 66-660 ton. High speed high performance mechanical stamping press. Plunger-guided hi-torque metal forming technology.

SERVICE, WARRANTY & SUPPORT

Learn more >

FEATURES & COMPONENTS

Installation & Service

Trucking, rigging & foundation upon request
Technicians for press start up and training
Preventative Maintenance Programs at 6-12 months
3-2-1 Warranty based on multi-shift use

Pneumatic

Ross safety lock out valve
Frames are stress relieved after welding
SMC liquid filled gages
SMC regulators & lubricators
NOK seals & packings
Ross DM series DSV dual safety valve
Hi Torque combination clutch & brake
Air pressure switch monitored at control
Air counter balance cylinder for upper die weight
Flywheel brake for safe entry to die area

Mechanical

Robust fabricated steel frames
Frames are stress relieved after welding
NTN Bearings on high speed shafts
Gears run in self-contained oil bath
High compression bronze bushings
Crankshafts are rated for 150% capacity
Three piece connecting rod w/ alloy insert
Motorized slide adjustment (66 ton & above)
Six & eight point full length slide guides
T-Slotted bolster & slide for die clamping

Lubrication

IHI automatic grease lubrication
Recirculating Oil Systems (larger presses)
IHI electrically monitored lube distribution blocks
Bijur automatic air-counter balance oiler

Safety Equipment

Adjustable Safety Die Block Electrically Interlocked to Emergency Stop Circuit
Flywheel Brake for Quick Stopping of Flywheel during during die maintenance or die change
Light Curtains for FRONT & REAR 40" (optional)
Light Curtains for FRONT & REAR 30" (optional)

‍

Standard Features

Rotary Encoder with Time & Distance Brake Monitor
Floor Mounted MEP-Main Panel
20% Open Space in MEP for future items
Mobile T-Stand Run Station
Motorized Slide Adjustment with Mechanical Read Out
OMPI Combination Dry Clutch and Brake with Dual Safety Air Valve
Automatic Lubrication System with Electronic Monitor
Cycle Switch
Automatic Air Counter Balance Oiler
Automatic Air Counter Balance Oiler
Hydraulic Overload System (HOLP) integrated with a key switch located on MOS Operator Control

Mobile T-Stand
Run Station

Press Control

Omron Platform (included)
9" Color Touch Screen
Tonnage Monitor (optional)
on
Rockwell AB Platform (optional)
10" Color Panel View Touch Screen
Tonnage Monitor (included)
Hanging Swivel MOS / Master Operation Station
I-PRESS® user Friendly Easy Navigation Screens
I-PRESS® Connected Enterprise for Remote Login
200 Job Memory Storage (expandable)
12 Cams Programmable & Nameable
16 Die Monitor Outputs Programmable & Nameable
Fault Monitors to Protect Press, Automation & Tooling
Stroke Position & Speed Indicator on Main Run Screen
Brake Monitor with Stopping Time Readout
Variable Speed Drive Programmable by Job

I-PRESS®
Press Control
