Press Control

Omron Platform (included)

9” Color
Touch Screen

Tonnage Monitor (optional)

on
Rockwell AB Platform (optional)

10” Color
Panel View Touch Screen

Tonnage Monitor (included)

Hanging Swivel MOS / Master Operation Station

I-PRESS® user Friendly Easy Navigation Screens

I-PRESS® Connected Enterprise for Remote Login

200 Job Memory Storage (expandable)

12 Cams Programmable & Nameable

16 Die Monitor Outputs Programmable & Nameable

Fault Monitors to Protect Press, Automation & Tooling

Stroke Position & Speed Indicator on Main Run Screen

Brake Monitor with Stopping Time Readout

Variable Speed Drive Programmable by Job

I-PRESS®
Press Control

Standard Features

Rotary Encoder with Time & Distance Brake Monitor

Floor Mounted MEP-Main Panel

20% Open Space in MEP for future items

Mobile T-Stand Run Station

Motorized Slide Adjustment with Mechanical Read Out

OMPI Combination Dry Clutch and Brake with Dual Safety Air Valve

Automatic Lubrication System with Electronic Monitor

Cycle Switch

Automatic Air Counter Balance Oiler

Hydraulic Overload System (HOLP) integrated with a key switch located on MOS Operator Control

‍

Mobile T-Stand
Run Station

Safety Equipment

Adjustable Safety Die Block Electrically Interlocked to Emergency Stop Circuit

Flywheel Brake for Quick Stopping of Flywheel during during die maintenance or die change

Light Curtains for FRONT & REAR 40" (optional)

Light Curtains for FRONT & REAR 30" (optional)

‍

Lubrication

IHI automatic grease lubrication

Recirculating Oil Systems (larger presses)

IHI electrically monitored lube distribution blocks

Bijur automatic air-counter balance oiler

Mechanical

Robust fabricated steel frames

Frames are stress relieved after welding

NTN Bearings on high speed shafts

Gears run in self-contained oil bath

High compression bronze bushings

Crankshafts are rated for 150% capacity

Three piece connecting rod w/ alloy insert

Motorized slide adjustment (66 ton & above)

Six & eight point full length slide guides

T-Slotted bolster & slide for die clamping

Pneumatic

Ross safety lock out valve

Frames are stress relieved after welding

SMC liquid filled gages

SMC regulators & lubricators

NOK seals & packings

Ross DM series DSV dual safety valve

Hi Torque combination clutch & brake

Air pressure switch monitored at control

Air counter balance cylinder for upper die weight

Flywheel brake for safe entry to die area

Installation & Service

Trucking, rigging & foundation upon request

Technicians for press start up and training

Preventative Maintenance Programs at 6-12 months

3-2-1 Warranty based on multi-shift use

STROKE &
SPEED

CAPACITY
US TON

RATED TONNAGE

DRIVE
CONFIGURATION

Stroke Length

SPM

DIE HEIGHT

Slide Adjustment

SLIDE
AREA

Shank Knock Out

BOLSTER AREA

BOLSTER
THICKNESS

FLOOR TO BOLSTER

SIDE WINDOW
OPENING

HEIGHT

WIDTH

DEPTH

PRESS WEIGHT

SLIDE ADJUSTING
MOTOR

MAIN MOTOR

POWER
REQUIREMENTS

AIR COUNTER
BALANCE

AIR PRESSURE
REQUIRED

DIE CUSHION
CAPACITY TON

DIE CUSHION
STROKE LENGTH

DIE CUSHION
AREA

MARK 2-121

121

0.12

0.24

Front to Back Counter Rotating Gears

4.30

7.1

50-100

35-65

15.7

0.5

55.1 x 19.7

70.9 x 25.6

5.1

34.4

31900

lbs

0.5

480/380/240

lbs

psi

MARK 2-176

176

0.12

0.24

Front to Back Counter Rotating Gears

5.10

7.9

40-85

30-55

17.7

63 x 21.7

78.7 x 29.9

5.9

35.4

146

47300

lbs

0.5

480/380/240

lbs

psi

MARK 2-220

220

0.12

0.24

Front to Back Counter Rotating Gears

5.90

9.8

35-70

25-45

19.7

72.8 x 25.6

7.3

35.4

1515

59400

lbs

480/380/240

lbs

psi

MARK 2-275

275

0.14

0.28

Front to Back Counter Rotating Gears

6.70

11.0

30-60

20-35

23.8

21.7

82.7 x 27.6

106.3 x 35.4

7.3

47.2

169.4

92400

lbs

480/380/240

lbs

psi

Scroll

STROKE &
SPEED

CAPACITY
US TON

RATED TONNAGE

DRIVE
CONFIGURATION

Stroke Length

SPM

DIE HEIGHT

Slide Adjustment

SLIDE
AREA

Shank Knock Out

BOLSTER AREA

BOLSTER
THICKNESS

FLOOR TO BOLSTER

SIDE WINDOW
OPENING

HEIGHT

WIDTH

DEPTH

PRESS WEIGHT

SLIDE ADJUSTING
MOTOR

MAIN MOTOR

POWER
REQUIREMENTS

AIR COUNTER
BALANCE

AIR PRESSURE
REQUIRED

DIE CUSHION
CAPACITY TON

DIE CUSHION
STROKE LENGTH

DIE CUSHION
AREA

MARK 2-121

110

Front to Back Counter Rotating Gears

110

180

50-100

35-65

400

0.5

1400 x 500

1800 x 650

130

875

14500

kgs

0.5

480/380/240

kgs

kg/cm2

MARK 2-176

160

Front to Back Counter Rotating Gears

130

200

40-85

30-55

450

1600 x 550

200 x 760

150

900

3709

21500

kgs

0.5

480/380/240

kgs

kg/cm2

MARK 2-220

200

Front to Back Counter Rotating Gears

150

250

35-70

25-45

500

1850 x 650

2400 x 840

185

900

3849

27000

kgs

480/380/240

kgs

kg/cm2

MARK 2-275

250

Front to Back Counter Rotating Gears

170

280

30-60

20-35

605

550

2100 x 700

2700 x 900

185

1198

4304

42000

kgs

480/380/240

kgs

kg/cm2

Scroll

FEATURES & COMPONENTS

Press Control

Omron Platform (included)

9” Color
Touch Screen

Tonnage Monitor (optional)

on
Rockwell AB Platform (optional)

10” Color
Panel View Touch Screen

Tonnage Monitor (included)

Hanging Swivel MOS / Master Operation Station

I-PRESS® user Friendly Easy Navigation Screens

I-PRESS® Connected Enterprise for Remote Login

200 Job Memory Storage (expandable)

12 Cams Programmable & Nameable

16 Die Monitor Outputs Programmable & Nameable

Fault Monitors to Protect Press, Automation & Tooling

Stroke Position & Speed Indicator on Main Run Screen

Brake Monitor with Stopping Time Readout

Variable Speed Drive Programmable by Job

I-PRESS®
Press Control

Standard Features

Rotary Encoder with Time & Distance Brake Monitor

Floor Mounted MEP-Main Panel

20% Open Space in MEP for future items

Mobile T-Stand Run Station

Motorized Slide Adjustment with Mechanical Read Out

OMPI Combination Dry Clutch and Brake with Dual Safety Air Valve

Automatic Lubrication System with Electronic Monitor

Cycle Switch

Automatic Air Counter Balance Oiler

Hydraulic Overload System (HOLP) integrated with a key switch located on MOS Operator Control

‍

Mobile T-Stand
Run Station

Safety Equipment

Adjustable Safety Die Block Electrically Interlocked to Emergency Stop Circuit

Flywheel Brake for Quick Stopping of Flywheel during during die maintenance or die change

Light Curtains for FRONT & REAR 40" (optional)

Light Curtains for FRONT & REAR 30" (optional)

‍

Lubrication

IHI automatic grease lubrication

Recirculating Oil Systems (larger presses)

IHI electrically monitored lube distribution blocks

Bijur automatic air-counter balance oiler

Mechanical

Robust fabricated steel frames

Frames are stress relieved after welding

NTN Bearings on high speed shafts

Gears run in self-contained oil bath

High compression bronze bushings

Crankshafts are rated for 150% capacity

Three piece connecting rod w/ alloy insert

Motorized slide adjustment (66 ton & above)

Six & eight point full length slide guides

T-Slotted bolster & slide for die clamping

Pneumatic

Ross safety lock out valve

Frames are stress relieved after welding

SMC liquid filled gages

SMC regulators & lubricators

NOK seals & packings

Ross DM series DSV dual safety valve

Hi Torque combination clutch & brake

Air pressure switch monitored at control

Air counter balance cylinder for upper die weight

Flywheel brake for safe entry to die area

Installation & Service

Trucking, rigging & foundation upon request

Technicians for press start up and training

Preventative Maintenance Programs at 6-12 months

3-2-1 Warranty based on multi-shift use

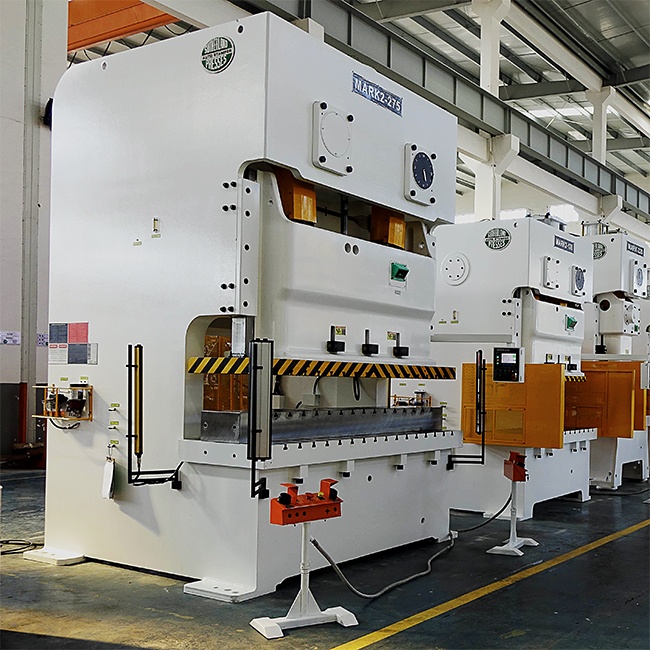

MARK 2 SERIES

DOUBLE POINT PRECISION WIDE BED GAP FRAME

SERVICE, WARRANTY & SUPPORT

121-330 ton
